- Set-up
- < 5 min
- Packed weight
- 129 kg

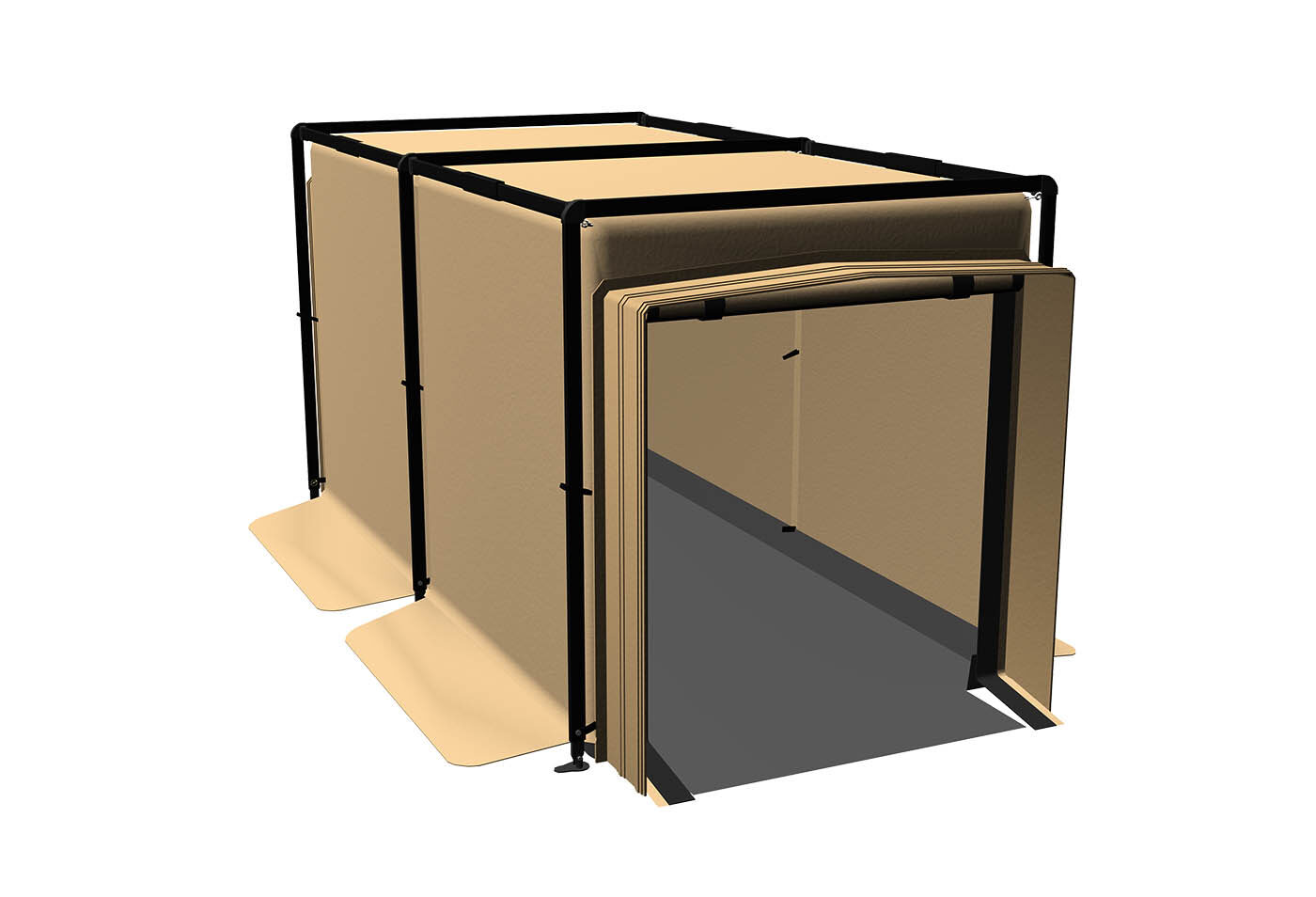

Vestibule, corridor
The S10 corridor is ideally suitable to shape corridors such as in a field hospital in order to link and access the different functional tents.
The S10 corridor model offers 10 sqm easily set up within 5 minutes by 3 people.
Dimensions
Dimensions and dimensioned plan
Cross-section
Top viewFootprint
- Footprint
- 2.20 × 4.40 m
- Overall width
- 2.20 m
- Usable width
- 2.00 m
- Height at the centre
- 2.20 m
- Standing height
- 2.20 m
- Sections of 2.20 m
- 2
Packing and set-up
Packing and deployment
3 packages
129 kg| Frame (body + legs) | PVC bag - 2 × 0.3 × 0.2 m | 59 kg |
|---|---|---|
| Main canvas | PVC bag - 2 × 0.4 × 0.2 m - Depends on the configuration (doors, gable ends, windows,...) | 53 kg |
| Staking kit | PVC bag - 1 × 0.4 × 0.2 m | 17 kg |
< 5 minSet up by 3 people
Specifications
Technical specifications
Available configurations
- Frame colour
- Black
- Canvas colour
- NATO green, sand or white
- Lateral door
- Optional
- Windows on front doors
- Yes with crystal + mosquito net + external shutter
- Mosquito net on lateral windows
- Optional
- Ground sheet
- Fully welded or velcro
- Polyester inner liner
- Optional
- Insulated inner liner
- Optional
- Thermal fly
- Optional
- CBRN liner
- Optional
- Partition curtain
- Optional
- Protective ground sheet
- Optional
- Connection to container or vehicle
- Optional
- Blackout capability
- Optional
- Ceiling net
- Yes
- Sleeve
- Optional
- Flammability of the fabrics
- M2
- Fabrics repair kit
- Yes
- Setting-up kit
- Yes
- Front door
- At each end
- Lateral windows
- Optional
- Marking / logo
- Optional
Quote
A project with this product?
Tell us the quantities, the intended use and the equipment you need: our design office will come back to you with a proposal and a layout plan.
