VS series

VS12 corridor

Request a quote Documents
Set-up
< 5 min
Packed weight
183 kg

Vestibule, Corridor

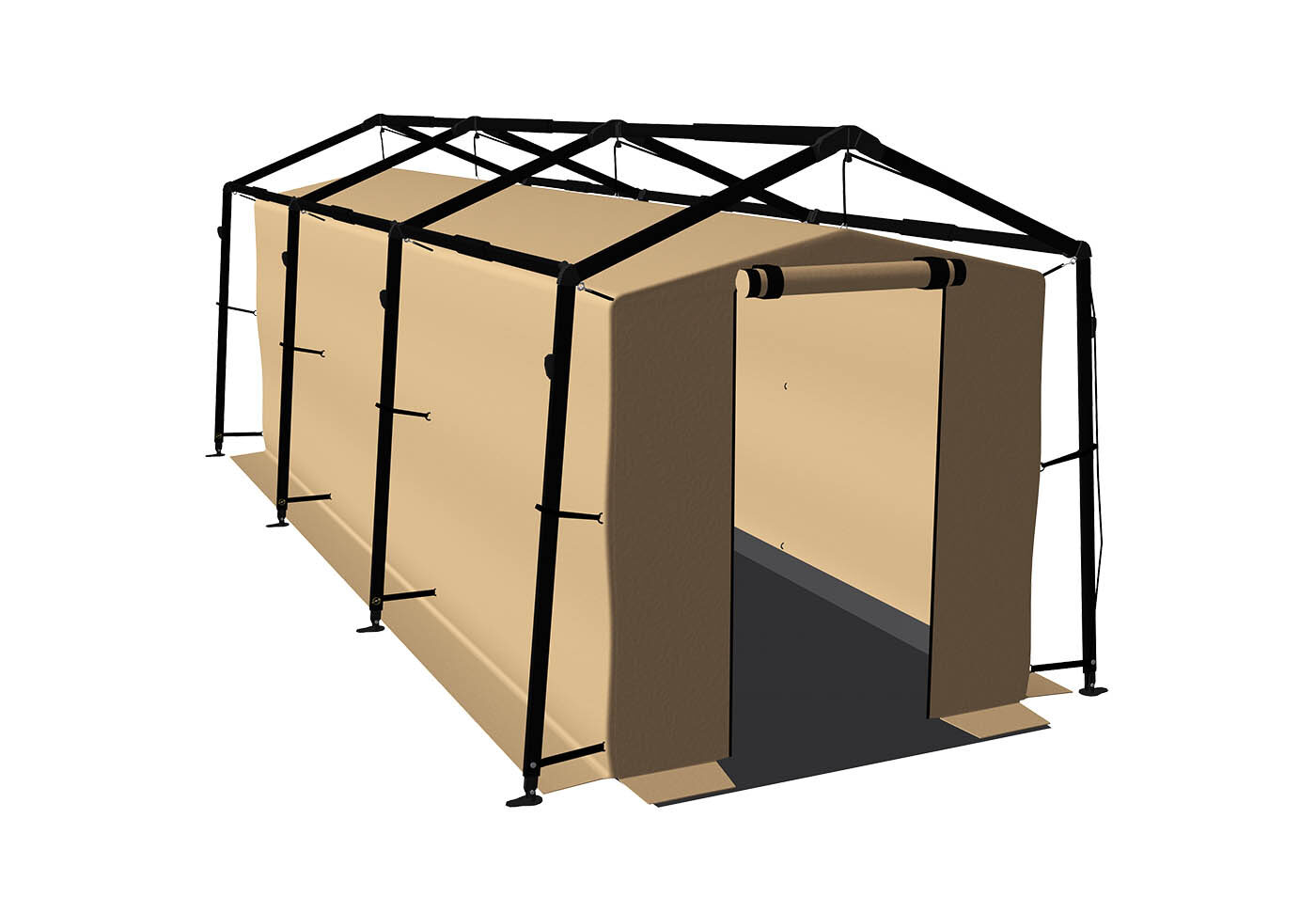

The VS12 corridor is ideally suitable to form hallways in field hospitals and to link functional tents.
It can be fitted with a hard door including mosquito net.
The VS12 corridor model offers 17 sqm easily setup within 5 minutes by 4 people.

Dimensions

Dimensions and dimensioned plan

Cross-section

1.80 mUsable space 2.00 × 2.20 m 2.00 m usable 2.40 m overall 2.20 m at the sides 2.20 m standing 2.70 m at the centre

Top viewFootprint

Ridge line3 sections of 2.50 m 2.40 m 7.50 m
Footprint
2.40 × 7.50 m
Overall width
2.40 m
Usable width
2.00 m
Height at the centre
2.70 m
Height at the sides
2.20 m
Standing height
2.20 m
Sections of 2.50 m
3

Packing and set-up

Packing and deployment

3 packages

183 kg
Packing details - VS12 corridor
Frame (body + legs) PVC bag - 2 × 0.3 × 0.4 m 96 kg
Main canvas PVC bag - 2 × 0.4 × 0.2 m - Depends on the configuration (doors, gable ends, windows,...) 66 kg
Staking kit PVC bag - 1 × 0.4 × 0.2 m 21 kg
< 5 minSet up by 4 people

Specifications

Technical specifications

Available configurations

Frame colour
Black
Canvas colour
NATO green, sand or white
Lateral door
Optional
Windows on front doors
Yes with crystal + mosquito net + external shutter
Mosquito net on lateral windows
Optional
Ground sheet
Fully welded or velcro
Polyester inner liner
Optional
Insulated inner liner
Optional
Thermal fly
Optional
CBRN liner
Optional
Partition curtain
Optional
Protective ground sheet
Optional
Connection to container or vehicle
Optional
Blackout capability
Optional
Ceiling net
Yes
Sleeve
Optional
Flammability of the fabrics
M2
Fabrics repair kit
Yes
Setting-up kit
Yes
Front door
1,80 m width, other optional dimension
Lateral windows
Yes with crystal + external shutter
Marking / logo
Optional
